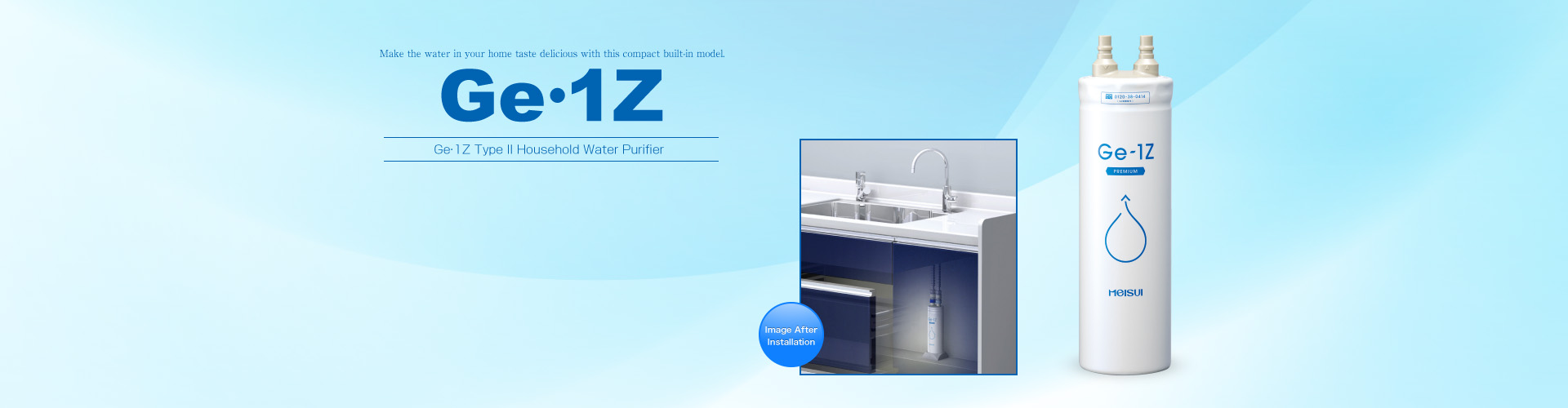

Ge・1Z Type II Built-in Water Purifier

The MEISUI Maintenance System (MMS), which provides our customers services ranging from planning, production, selling, maintenance, collection and recycling as a "Household Built-in Water Purifier & Maintenance" service was awarded the 2016 Good Design Award.

Primary Features of Ge・1Z

Excellent filtration performance that provides delicious and safe water.

By using high-power activated carbon (a high-tech material), we have been able to fit high capacity performance generated from a large flow capacity into a compact body.

Beautiful and smart design.

Since it is a built-in water purifier, the only thing you'll see in on your kitchen counter is the beautifully designed faucet. It makes your home look good with its refined design that keeps things looking sleek and spacious.

Structurally designed with safety in mind.

Uses the "Moto Stop Valve System" which only allows water to flow through the cartridge when the water purifier faucet lever is used. We aimed to make it easy to replace cartridges and also safety.


High-performance filter materials effectively remove impurities.

The high-power activated carbon and hollow fiber membrane filters remove the odors and impurities from your water while leaving minerals intact.

Filter Layer

  • Tap Water

  • High-powered Activated Carbon

  • Hollow Fiber Membrane

  • Delicious Water

High-powered Activated Carbon

We've achieved greater filtration capacity and enhanced water purification in a cartridge with the same size as traditional cartridges a reality with coconut shell-based fine powder carbon that posses a large surface area and incredible absorption power molded uniformly into a layer using special technology. It physically absorbs odors organic chlorine compounds (such as trihalomethane, tetrachloroethylene), agricultural chemicals (CAT), and mold smells, allowing free residual chlorine to be powerfully removed by the reaction. Additionally, by combining ceramic, it also absorbs soluble lead.

Hollow Fiber Membrane

Filters impurities up to 0.15 microns in size. In addition to iron rust, aluminum and turbidity, it also removes normal bacteria.

Price & Specifications

Water Purifier + Water Faucet Price

  FA4C/FA4S FB3 FY2 FHGS
Ge・1Z 77,000 yen
(tax included)
81,950 yen
(tax included)
107,800 yen
(tax included)
107,800 yen
(tax included)

Specifications

  Ge・1Z
Type Type II
Filtration Flow Rate 4.0 L/minute
Filter Materials Non-woven fabric, granular coconut shell activated carbon (combined with ceramic), hollow fiber membrane
Filtration Power Free Residual Chlorine
(when 2.0 mg/L)
100,000 L
(90% removal rate)
Turbidity
(when turbidity is 2 degrees)
11,000 L
(50% filtration flow rate)
Trihalomethane
(when 0.100 mg/L)
11,000 L
(90% removal rate)
CAT (Simazine)
(when 0.0030 mg/L)
50,000 L
(90% removal rate)
Solubility
(when 0.050 mg/L)
11,000 L
(90% removal rate)
2-MIB (mold smell)
(when 0.00005 mg/L)
15,000 L
(90% removal rate)
Tetrachloroethylene
(when 0.010 mg/L)
50,000 L
(90% removal rate)
Trichloroethylene
(when 0.030 mg/L)
50,000 L
(90% removal rate)
1,1,1-Trichloroethylene
(when 0.300 mg/L)
11,000 L
(90% removal rate)
Chloroform
(when 0.060 mg/L)
11,000 L
(90% removal rate)
Bromodichloromethane
(when 0.030 mg/L)
25,000 L
(90% removal rate)
Dibromochloromethane
(when 0.100 mg/L)
25,000 L
(90% removal rate)
Bromoform
(when 0.090 mg/L)
25,000 L
(90% removal rate)
Operating Water Pressure 0.1 to 0.75 MPa (1.0 to 7.6 kgf/cm2)
Hydrostatic Test Pressure Operating Water Pressure: 0.75 MPa (7.6 kgf/cm2) per minute
Weight (when full) 0.6 kg (1.2 kg)
Filter Material Usable Life *1 11,000 L or within 12 months (when using 30 L a day)
Size (mm) 78 diameter × 285 height
  • * Filtration power is a test result calculated using JIS S 3201 -household water purifier testing methods.
  • * Hard water cannot be changed into soft water.
  • * Please use only for tap water which contains 0.1 mg/L or more of free residual chlorine.
  • * Product design and specifications are subject to change due to improvements or other reason without prior notice.

  1. *1 Short materials with filtration power have been compiled together as a standard.

Download Catalog

Type II Household Built-in Water Purifier
Ge・1Z Product Catalog

2 pages | 2.5 MB (PDF) Japanese only

Download PDF

What MEISUI Cares About

They remove impurities and odors found in the water and leave in the minerals that makes water delicious, providing you with safe and great tasting water. When it comes to built-in water purifiers, you can see what MEISUI cares about when you take a look at their ease of use for work recognized by even professionals and their filtration power.

Learn more
