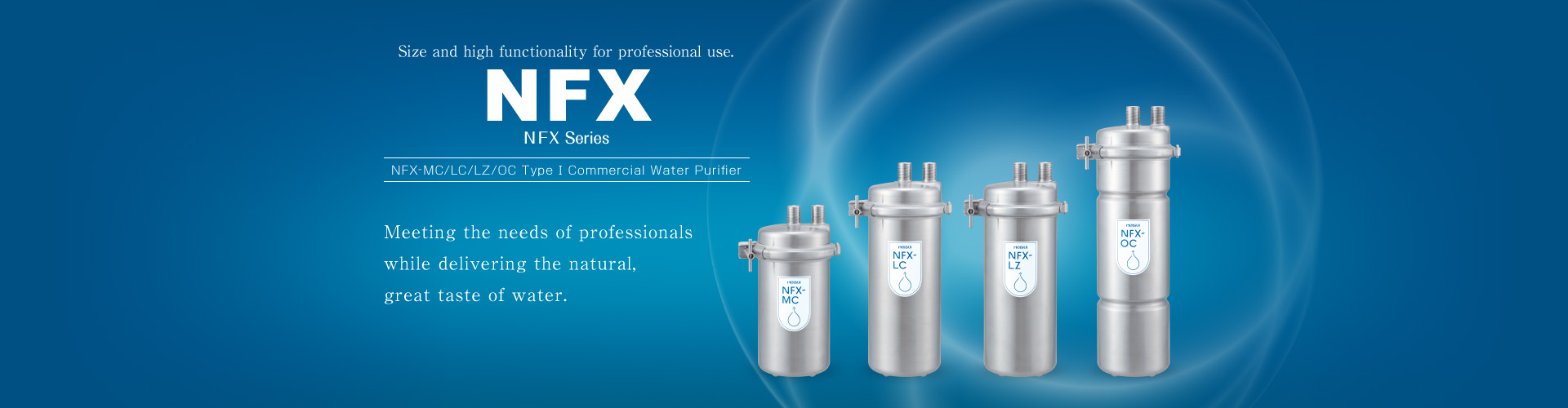

NFX Series Type I Commercial Water Purifiers

Main Features of the NFX Series

Removes impurities and odors while leaving minerals in.

It removes free residual chlorine, mold smells and organic chlorine compounds such as trihalomethane while leaving the components and minerals that gives water its delicious taste intact.

Thoroughly purifiers water with a high-performance filter.

The filter removes odors and ordinary bacterial by using high quality granular coconut shell activated carbon, special fibrous activated carbon combined with ion exchange resin and a hollow fiber membrane* that filters tiny impurities.
* Specifications only for the NFX-LZ.

Different options available depending on where it'll be installed.

We have four models varying in water purifier performance and size to choose from to match use, installation space and amount of water usage.

Price & Specifications

Structure & Sizes

NFX-MC, NFX-LC, NFX-OC

Granular coconut shell activated carbon + Special fibrous activated carbon model

Enhanced filtration performance by combining two types of activated carbon.

With its quick absorption power, it removes even more organic chlorine compounds such as free residual chlorine, mold smells and trihalomethane.

  • Granular coconut shell activated carbon

  • Special fibrous activated carbon

NFX-LZ

Granular coconut shell activated carbon + Special fibrous activated carbon + hollow fiber membrane model

Combines two types of activated carbon and a hollow fiber membrane.

The activated carbon layer removes free residual chlorine, mold smells and organic chlorine compounds such as trihalomethane and the hollow fiber membrane removes impurities larger than 0.15 microns (such as turbidity and aluminum).

  • Granular coconut shell activated carbon

  • Special fibrous activated carbon

  • Hollow Fiber Membrane

Price

  Price
NFX-MC 48,600 yen
(tax included)
NFX-LC 54,000 yen
(tax included)
NFX-OC 64,800 yen
(tax included)
NFX-LZ 64,800 yen
(tax included)

Specifications

  NFX-MC NFX-LC NFX-OC NFX-LZ
Type Type I
Filtration Flow Rate 5.0 L/minute 5.0 L/minute 8.0 L/minute
(when 0.15 MPa)
4.0 L/minute
Filter Materials Non-woven fabric, granular coconut shell activated carbon,
special fibrous activated carbon
(ion exchange fiber compound)
Non-woven fabric, granular coconut shell activated carbon,
special fibrous activated carbon
(ion exchange fiber compound)
hollow fiber membrane
Filtration Power Free Residual Chlorine
(when 2.0 mg/L)
50,000 L 100,000 L 300,000 L 100,000 L
Turbidity
(when turbidity is 2 degrees)
20,000 L
Trihalomethane
(when 0.100 mg/L)
15,000 L 25,000 L 35,000 L 25,000 L
CAT (Simazine)
(when 0.0030 mg/L)
50,000 L 100,000 L 200,000 L 100,000 L
Solubility
(when 0.050 mg/L)
20,000 L 20,000 L 30,000 L 20,000 L
2-MIB (mold smell)
(when 0.00005 mg/L)
20,000 L 50,000 L 50,000 L 30,000 L
Tetrachloroethylene
(when 0.010 mg/L)
50,000 L 100,000 L 200,000 L 100,000 L
Trichloroethylene
(when 0.030 mg/L)
50,000 L 100,000 L 200,000 L 100,000 L
1,1,1-Trichloroethylene
(when 0.300 mg/L)
10,000 L 20,000 L 30,000 L 20,000 L
Operating Water Pressure 0.1 to 0.75 MPa
(1.0 to 7.6 kgf/cm2)
0.15 to 0.75 MPa
(1.5 to 7.6 kgf/cm2)
0.1 to 0.75 MPa
(1.0 to 7.6 kgf/cm2)
Hydrostatic Test Pressure 1.75 MPa (17.8 kgf/cm2) per minute
Weight (when full) 1.6 kg (2.9 kg) 1.9 kg (3.5 kg) 2.5 kg (4.5 kg) 2.1 kg (3.1 kg)
Filter Material Usable Life Within 12 months
Maximum Operating Temperature 35℃
Piping Connector Size G1/2
Size (mm) 104 diameter × 245 height 104 diameter × 303 height 104 diameter × 384 height 104 diameter × 303 height
  • * Filtration power is a test result calculated using JIS S 3201 -household water purifier testing methods.
  • * Hard water cannot be changed into soft water.
  • * Please use only for tap water which contains 0.1 mg/L or more of free residual chlorine.
  • * Please be sure to install a pressure regulator before the water purifier if water hammering occurs.
  • * Product design and specifications are subject to change due to improvements or other reason without prior notice.

Download Catalog

NFX Series Type I Water Purifier
Product Catalog

2 pages | 1.3 MB (PDF) Japanese only

Download PDF

What MEISUI Cares About

They remove impurities and odors found in the water and leave in the minerals that makes water delicious, providing you with safe and great tasting water. When it comes to built-in water purifiers, you can see what MEISUI cares about when you take a look at their ease of use for work recognized by even professionals and their filtration power.
