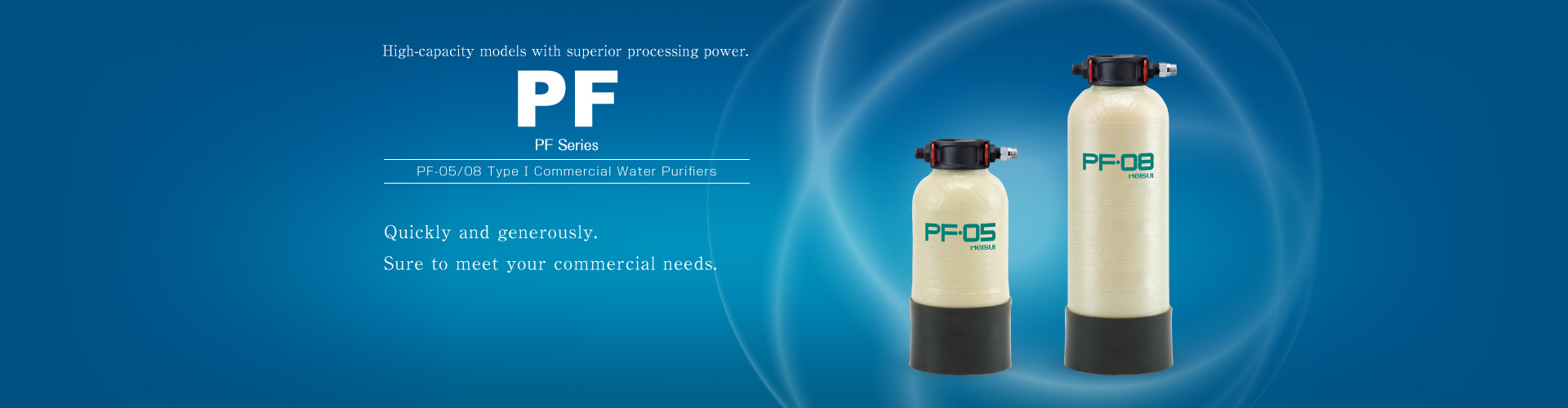

PF Series Type I Commercial Water Purifiers

Main Features of the PF Series

Can process large amounts of water in a short amount of time thanks to high filtration power.

Designed with a large capacity so they are perfect for locations with heavy water use such as food product processing factories, hotels and restaurants. Different variations available to choose on depending on use and capacity.

Thoroughly removes odors and impurities using granular coconut shell activated carbon.

Through the fast absorption speed of granular coconut shell activated carbon, free residual chlorine and impurities are thoroughly removed, giving you delicious water.

Price & Specifications

Structure & Sizes

PF-05, PF-08

Granular coconut shell activated carbon + Fibrous activated carbon model

With its quick absorption power, it takes even more mold smells and organic chlorine compounds out such as free residual chlorine and trihalomethane.


  • Granular Coconut Shell Activated Carbon

  • Fibrous activated carbon

  PF-05 PF-08
A 386 514
B(Φ) 157 157
C(Φ) 167 167
D 90 90
E 156 156
(Measurement unit: mm)

Price

  Price
PF-05 86,400 yen (tax included)
PF-08 105,840 yen (tax included)

Specifications

  PF-05 PF-08
Type Type I (Cartridge model)
Filtration Flow Rate 10 L/minute 12 L/minute
Filter Materials Granular coconut shell activated carbon, fibrous activated carbon
Free Residual Chlorine Filtration Power 120,000 L (when 2.0 mg/L) 200,000 L (when 2.0 mg/L)
Operating Water Pressure 0.1 to 0.75 MPa (1.0 to 7.6 kgf/cm2)
Hydrostatic Test Pressure 1.75 MPa (17.8 kgf/cm2) per minute
Weight When Full 7 kg 12.5 kg
Filter Material Usable Life 120,000 L or within 12 months
(when using 320 L a day)
200,000 L or within 12 months
(when using 540 L a day)
Maximum Operating Temperature 35℃
Piping Connector Size G1/2
  • * Filtration power refers to total filtered water capacity that has been tested to contain 2 mg/L of free residual chlorine and over 80% of that can be removed.
  • * Hard water cannot be changed into soft water.
  • * Please use only for tap water which contains 0.1 mg/L or more of free residual chlorine.
  • * Please be sure to install a pressure reduction valve before the water purifier if water hammering occurs.
  • * Product design and specifications are subject to change due to improvements or other reason without prior notice.

Download Catalog

Type I Water Purifiers
PF Series Product Catalog

2 pages | 1.3 MB (PDF) Japanese only

Download PDF

What MEISUI Cares About

They remove impurities and odors found in the water and leave in the minerals that makes water delicious, providing you with safe and great tasting water. When it comes to built-in water purifiers, you can see what MEISUI cares about when you take a look at their ease of use for work recognized by even professionals and their filtration power.

Learn more
