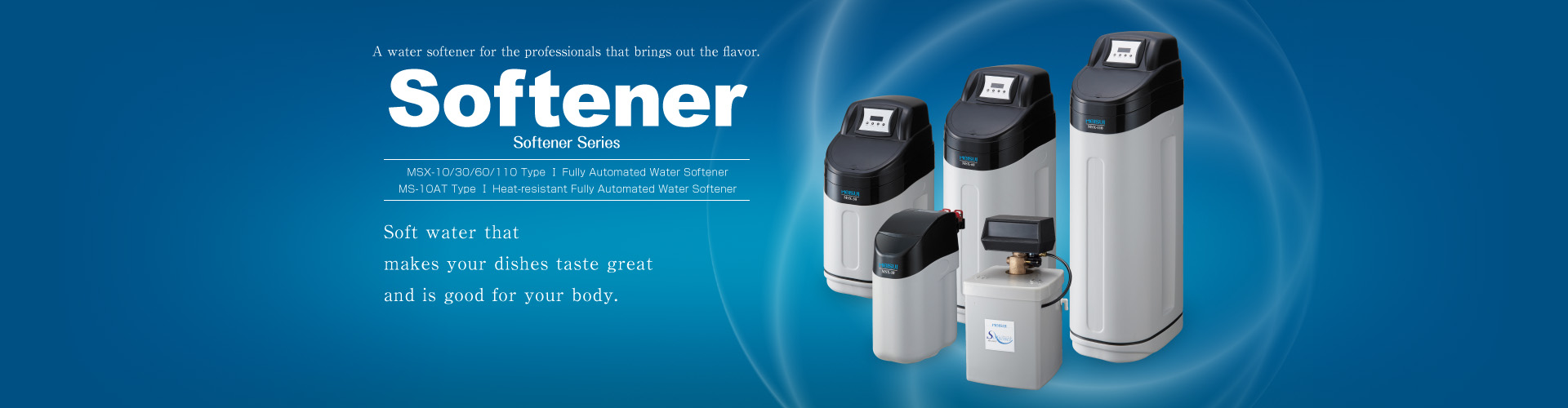

Softener Series MSX Series Type I Commercial Fully Automated Water Softener

Main Features of the Softener Series

Makes soft water perfect for cooking and food processing.

Soft water that is perfect for bringing out the flavors of your dishes and beverages such as tea. They provide you with soft water that helps bring out great flavors.

Can be used for various applications.

In addition to water for cooking, they can be used as water for processing foods such as tofu, noodles as well as for beauty and hairdressing, etc..

Prevent scale buildup.

Prevents scale buildup which occurs in steam convection ovens, coffee makers and other equipment.

Can be used for hot water.

The MS-10AT is a heat-resistant model that can handle hot water up to 60℃. Can be attached to hot-water supply lines, dishwashers, etc..

When Using for Food Processing

Please attach the water softer after the water filter when using for food processing.

  • Water source

  • Water purifier

  • Water softener

  • Soft water

Price & Specifications

Structure & Sizes

MSX-10

MSX-30/60/110

MS-10AT

  MSX-10 MSX-30 MSX-60 MSX-110 MS-10AT
A 445 620 840 1,060 520
B 396 470 705 930 364
C 360 470 470 470 280
Depth 205 330 330 330 280
Max. height with head cover 460 670 905 1,130
(Measurement unit: mm)

Price

  Price
MSX-10 162,000 yen (tax included)
MSX-30 216,000 yen (tax included)
MSX-60 280,800 yen (tax included)
MSX-110 378,000 yen (tax included)
MS-10AT 248,400 yen (tax included)

Specifications

  MSX-10 MSX-30 MSX-60 MSX-110 MS-10AT *2
Type Type I
Removed Contaminants Hardness
Ion Exchange Resin Amount 4.5 L 9 L 18 L 25 L 4 L
Standard Water Flow Amount m3/hr (L/minute) 0.24 (4) 1.0 (16) 1.5 (25) 2.0 (33) 0.24 (4)
Maximum Water Intake *1 m3/1 cycle 3.5 8.7 15.3 22 3.0
Operating Water Pressure MPa (kgf/cm2) 0.15 to 0.35
(1.5 to 3.6)
0.15 to 0.35
(1.5 to 3.6)
0.15 to 0.35
(1.5 to 3.6)
0.20 to 0.45
(2.0 to 4.6)
0.15 to 0.35
(1.5 to 3.6)
Piping Connector Size G1/2
Required Regeneration Time Approx. 35 minutes Approx. 95 minutes Approx. 95 minutes Approx. 95 minutes Approx. 165 minutes
Maximum Operating Temperature 40℃ 40℃ 40℃ 40℃ 60℃
Hydrostatic Test Pressure 0.8 MPa (8.2 kgf/cm2)
Power 100 V (50/60 Hz)
Power Consumption 3 W
Salt Usage Amount 0.6 kg per cycle 1.2 kg per cycle 2.2 kg per cycle 3.0 kg per cycle 0.6 kg per cycle
Regeneration Water Operating Capacity 65 L per cycle 300 L per cycle 300 L per cycle 300 L per cycle 135 L per cycle
Product Weight (when completely filled with water) 12.5 kg (16.5 kg) 21.5 kg (40.1 kg) 31.9 kg (50.7 kg) 41.5 kg (95.0 kg) 13.0 kg (20.0 kg)
  1. *1. Max. Water Intake refers to the amount of soft water intake for one cycle when the water hardness level is 50 mg/L.
  2. *2. Please specify an electrical power frequency of 50/60 Hz when ordering the MS-10AT.
  • * When the water source pressure is higher than the operating water pressure or when water hammering occurs, please install a pressure reduction valve before the water softener.
  • * The usage life of the ion exchange resin varies depending on the water source quality and water supply equipment but replacing once a year is recommended.
  • * Please consult with us if the standard water flow capacity is greater than the models above. We also have high capacity models available.
  • * Please attach the water softer after the water filter when using for food processing.
  • * Please use "MEI Clean S" for the regenerant.
  • * Product design and specifications are subject to change due to improvements or other reason without prior notice.

Download Catalog

Type I Commercial Fully Automated Water Softener
MSX Series Product Catalog

2 pages | 2.4 MB (PDF) Japanese only

Download PDF
