F Series Type I Commercial Water Purifier

Main Features of the F Series

A slim, space-saving model that works well with many layouts.

You can choose between installing it to be stationary or on the wall according to the layout of your kitchen space and environment. Its slim and small design allows you to install it in even tight spaces.

Thoroughly removes odors and impurities with two types of activated carbon.

Utilizes both granular coconut shell activated carbon and fibrous activated carbon. Properly filters compounds such as odors and trihalomethane that are on your mind.

Easy installation, easy replacement with the quick-joint.

The cartridge head uses a unique quick-joint. You can easily and quickly replace the water purifier cartridge.

Connect to the quick-joint with just one touch and lock the protective lock cover so that the cartridge does not come loose.

Compatible with parallel systems.

We can also recommend 2-unit, 4-unit systems, etc. depending on the application. Please feel free to ask us.

Price & Specifications

Structure & Sizes

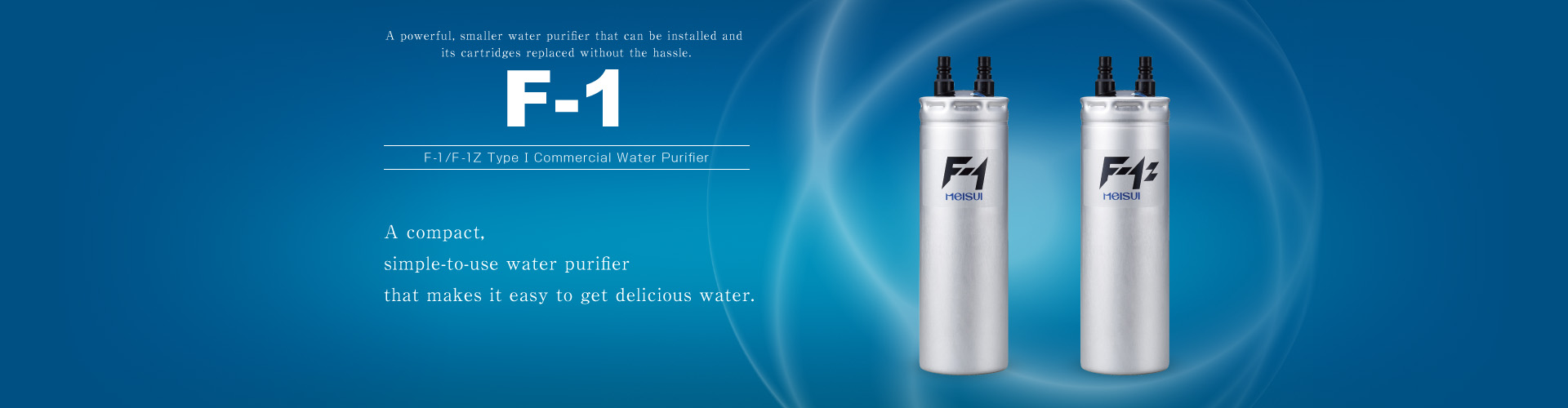

F-1

Granular coconut shell activated carbon + Fibrous activated carbon model

Replacing the water purifier cartridge is easy with the quick-joint. The slim model can be installed in even tight places.
Enhanced filtration performance made possible when filtering mold odors and organic chlorine compounds such as free residual chlorine, trihalomethane by combining two types of high-powered activated carbons.



  • Granular Coconut Shell Activated Carbon

  • Fibrous Activated Carbon

F-1Z

Granular coconut shell activated carbon + fibrous activated carbon + hollow fiber membrane model

Replacing the water purifier cartridge is easy with the quick-joint. The slim model can be installed in even tight places.
Enhanced filtration performance made possible when filtering mold odors and organic chlorine compounds such as free residual chlorine, trihalomethane by combining two types of high-powered activated carbons.

  • Granular Coconut Shell Activated Carbon

  • Fibrous Activated Carbon

  • Hollow Fiber Membrane

Price

  Price
F-1 37,800 yen (tax included)
F-1Z 41,040 yen (tax included)

Specifications

  F-1 F-1Z
Type Type I
Filtration Flow Rate 5.0 L/minute 4.0 L/minute
Filter Materials Non-woven fabric, granular coconut shell activated carbon, fibrous activated carbon Non-woven fabric, granular coconut shell activated carbon, fibrous activated carbon, hollow fiber membrane
Free Residual Chlorine Filtration Power
(Tested water concentration: when 2.0 mg/L)
50,000 L
(80% removal rate)
20,000 L
(80% removal rate)
Turbidity Filtration Power
(Sampled water concentration: 2 degrees)
20,000 L
(50% filtration flow rate)
Operating Water Pressure 0.10 to 0.75 MPa (1.0 to 7.6 kgf/cm2)
Hydrostatic Test Pressure 1.75 MPa (17.8 kgf/cm2) per minute
Weight (when full) 0.7 kg (1.4 kg) 0.7 kg (1.3 kg)
Filter Material Usable Life 50,000 L or within 12 months
(when using 130 L a day)
20,000 L or within 12 months
(when using 50 L a day)
Maximum Operating Temperature 35℃
Piping Connector Size G1/2 (quick-joint)
Size (mm) 78 diameter × 272 height
  • * Filtration power is a test result calculated using JIS S 3201 -household water purifier testing methods.
  • * Hard water cannot be changed into soft water.
  • * Please use only for tap water which contains 0.1 mg/L or more of free residual chlorine.
  • * Please be sure to install a pressure regulator before the water purifier if water hammering occurs.
  • * Product design and specifications are subject to change due to improvements or other reason without prior notice.
  F-1 3-unit systems
Type Type I
Filtration Flow Rate 15.0 L/minute (when 0.15 MPa)
Filter Materials Non-woven fabric, granular coconut shell activated carbon, fibrous activated carbon
遊離残留塩素 150,000 L (80% removal rate)
Operating Water Pressure 0.15 to 0.75 MPa (1.5 to 7.6 kgf/cm2)
Hydrostatic Test Pressure 1.75 MPa (17.8 kgf/cm2) per minute
Weight (when full) 10 kg (12 kg)
Filter Material Usable Life 150,000 L or within 12 months (when using 400 L a day)
Size (mm) 525 height × 430 width × 125 depth
  • * You can check how clogged the water purifier cartridge is using the attached pressure gauge.
  • * Each water purifier cartridge has a bypass valve, making replacing cartridges easy.
  • * We can also recommend 2-unit, 4-unit systems, etc. depending on the application. Feel free to ask us.

Download Catalog

Type I Water Purifier
F Series Product Catalog

2 pages | 1.4 MB (PDF) Japanese only

Download PDF

What MEISUI Cares About

They remove impurities and odors found in the water and leave in the minerals that makes water delicious, providing you with safe and great tasting water. When it comes to built-in water purifiers, you can see what MEISUI cares about when you take a look at their ease of use for work recognized by even professionals and their filtration power.
